100W Solar Panel
22.8% High Conversion Efficiency
Higher conversion efficiency helps maximize sunlight utilization, reduce the number of panels needed, lower system costs, and improve overall performance.

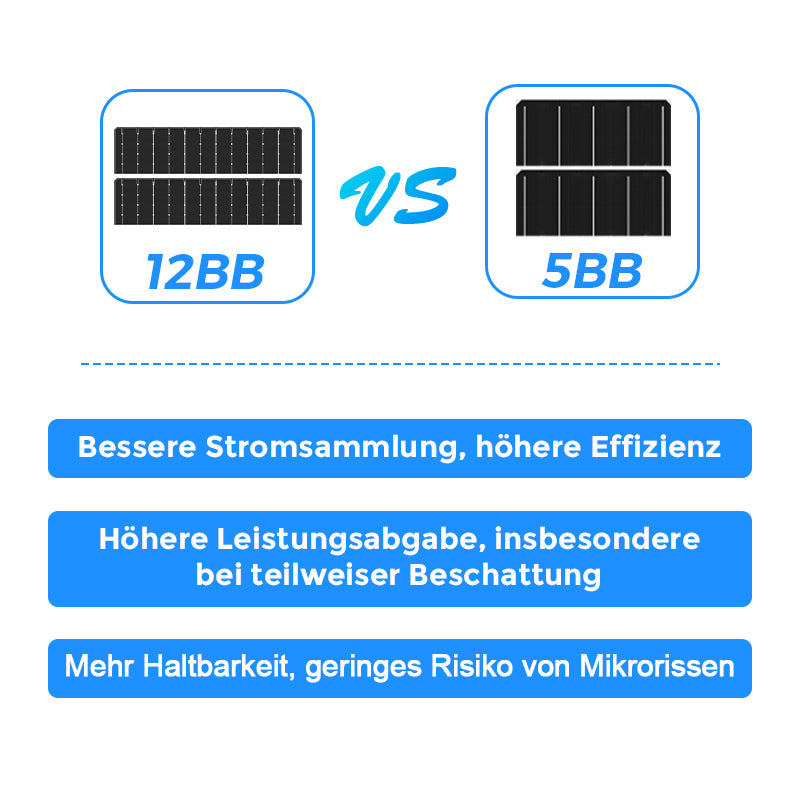

Upgraded 12BB solar panel
The 12BB solar panel minimizes power loss due to its optimized cell arrangement

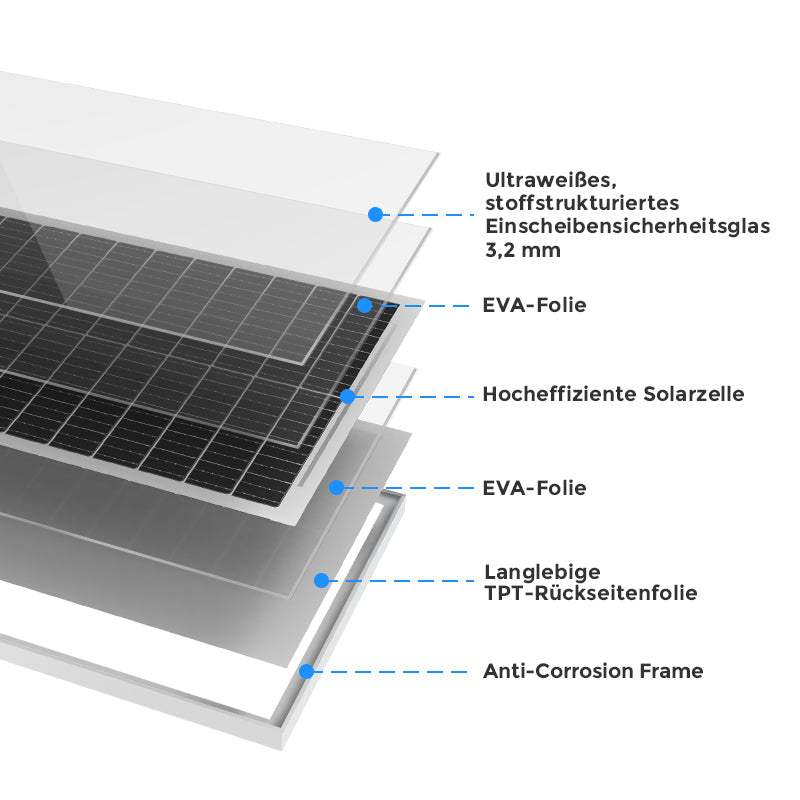

Built for Excellence Materials
Each solar panel is built with premium components and precision manufacturing to ensure excellent solar conversion efficiency and a longer lifespan.
25-Year Warranty
Long-term protection, reliability you can count on, and peace of mind for your solar investment.
100W Solar Panel
Estimated delivery between November 09 and November 11. Order within .
100W Bifacial Solar Panel Specifications
Module Performance
Max Power:100WCell Type:Monocrystalline
Maximum Power Voltage(Vmp):19.5V
Maximum Power Current (Imp):5.13A
Open Circuit Voltage (Voc):23.4V
Short Circuit Current (Isc):5.64A
Maximum System Voltage:DC1000V
Series Fuse Rating:30AMechanical Specifications
Dimensions:1010 × 460 × 30 mm
Weight:4.9 kg

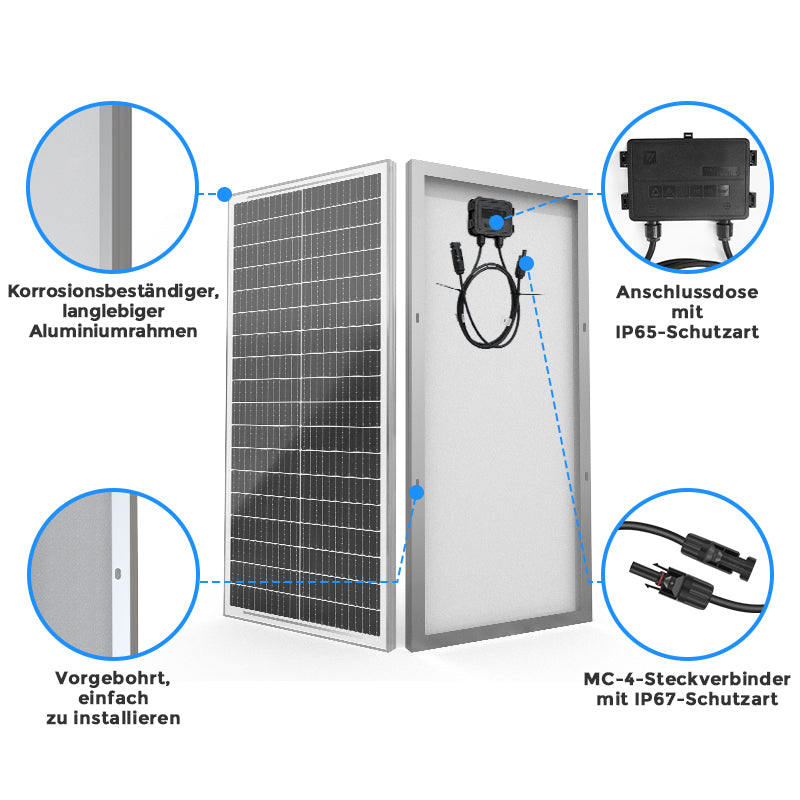

Connector:MC4 Compatible
Output Cables:4 mm² (90 cm)
Frame:Anodized Aluminum Alloy
Withstanding Hail:5400 Pa
Wind Resistance:2400 Pa
Junction Box:IP68 Rated
Protection Class:IP68Operating Parameters
NOCT:41–45°C
Temperature Coefficient of Voc:-0.25% / °C
Temperature Coefficient of Isc:+0.04% / °C
Temperature Coefficient of Pm:-0.34% / °C
Temperature Range:-40°C – +85°C
Share information about your brand with your customers. Describe a product, make announcements, or welcome customers to your store.
Product details
22.8% High Conversion Efficiency
Higher conversion efficiency helps maximize sunlight utilization, reduce the number of panels needed, lower system costs, and improve overall performance.
Upgraded 12BB solar panel
The 12BB solar panel minimizes power loss due to its optimized cell arrangement
Built for Excellence Materials
Each solar panel is built with premium components and precision manufacturing to ensure excellent solar conversion efficiency and a longer lifespan.
25-Year Warranty
Long-term protection, reliability you can count on, and peace of mind for your solar investment.
